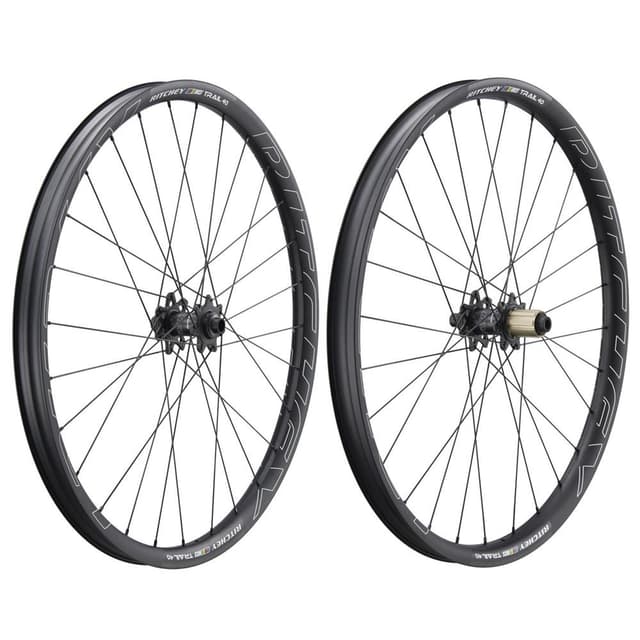

The Ritchey WCS Trail 40 Wheelset is designed to confidently carve through all manner of rowdy terrain with accuracy, durability and control.
These 650b hoops are light and stiff, yet durable and strong.
The WCS Trail 40 features an asymmetrical design with a 5mm spoke offset and internal channel offset for balanced spoke tension and increased strength and durability.
With 28 holes and a 25mm inner width, these tubeless wheels offer increased surface area for your tires to enjoy better traction on the trail.
With a new wider profile, the Trail 40 is highly capable and compatible with tire sizes from 2.4" to 3" that is an awesome addition to any XC or all-mountain build.
Each Ritchey wheelset is hand-built by a qualified Ritchey wheel technician.
Rear hub easily serviceable without tools, including cassette body removal.
Rims : alloy Tubeless - OCR offset.
Rim diameter : 27.5".
Rim depth : 24.2mm.
Outer rim width : 39.9mm.
Inner rim width : 35mm.
Suggested tire size range : 2.4"-3.0"
Hubs : forged disc thru-axle hubs and sealed bearings
Hubs spacing : Boost and 100/142mm
Axle Compatibilityhru-axle
Freewheel : 6-pawl, 12-point micro-clutch engagement system
Freehub material : alloy
Compatibility : Shimano 9/10/11-speed (SRAM XD freehub conversion kits sold separately)
Disc brake compatibility : Centerlock (hub center-lock lockrings sold separately)
Spokes : DT Competition 2.0/1.8 double butted.
Front : 28 spokes / 2x lacing.
Rear : 28 spokes / 2x lacing.
Nipples : 2.0 brass 12mm.
Color : BB black.
Weight : 1900g/set.
