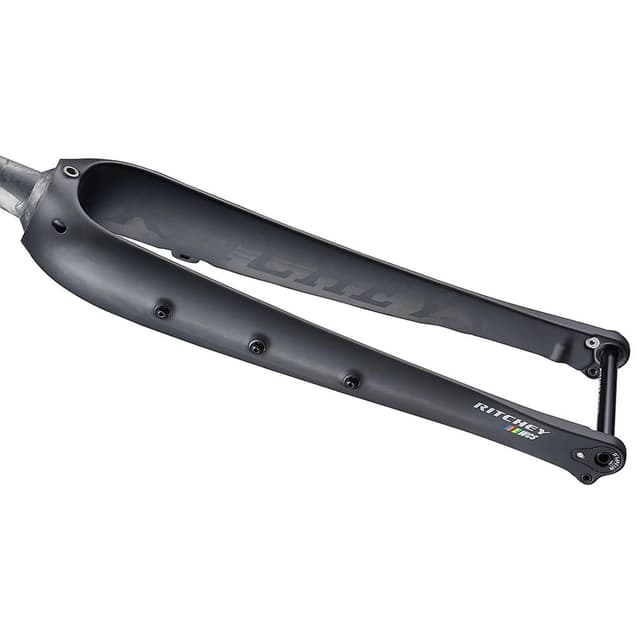

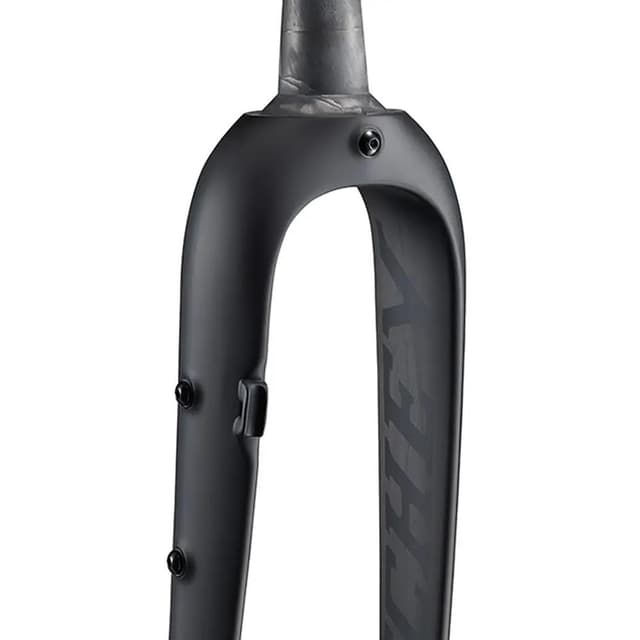

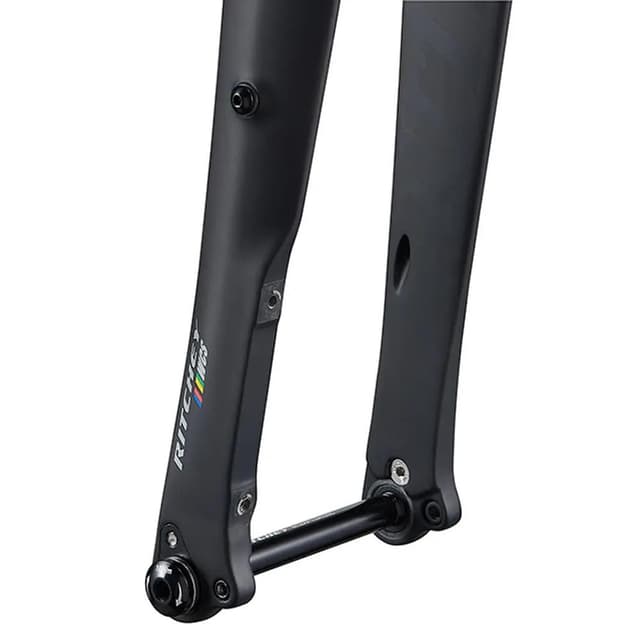

Introducing the Ritchey WCS Carbon Adventure Fork with a tapered (1"1/8-1.5") steerer tube - the perfect fork for cyclists looking to push their limits and explore new terrain. With over 50 years of experience in designing and building high-quality bicycle components, Tom Ritchey has created a one-piece carbon monocoque adventure fork that is engineered to deliver optimal performance and comfort, while also providing practical features for long-distance rides.
Crafted from High Modulus Fiber (HMF), this adventure fork offers exceptional strength and durability, while also reducing road chatter fatigue. The smooth internal fiber flow in the crown/steerer area provides superior force transfer and increased impact strength for those unexpected potholes.
The Ritchey WCS Adventure Fork features rack mounts for carrying gear, a fender mount to keep you and your bike clean, and three multi-purpose mounts on the legs for storing essentials. It also welcomes flat-mount disc brake calipers and fits up to 48mm tires, making it the ultimate addition to any adventure rig.
This carbon adventure fork has a tapered steerer with an integrated 45-degree crown race and 50mm rake/offset. It is compatible with 100x12mm thru-axle (included) and can be converted to 15mm with a separate kit. It fits 700 x 52mm and 650b x 2.0" tires, depending on the manufacturer, and has a minimum tire clearance of 4mm for road and 6mm for off-road. The fork also has a maximum payload of 3kg per side and weighs only 530g (with uncut steerer / not including axle).
Get ready to take on new adventures with the Ritchey WCS Carbon Adventure Fork for disc brakes.
Material : carbon fiber
Steerer : 1-1/8" to 1-1/2" tapered steerer, with integrated 45-degree crown race
Axle-crown : 393mm
Rake/Offset : 50mm
Crown Diameter : 60mm
Steerer length : 300mm
Spacing : 65mm
Axle Compatibility : 100x12mm thru-axle (included) – 15mm conversion kit available separately
Wheel and tire compatibility : 700 x 52mm, 650b x 2.0" (depending on tire/rim manufacturer)
Minimum Tire Clearance : 4mm road / 6mm offroad
Disc brake rotor compatibility140 / 160mm
Fork max payload : 3kg per side
Weight : 530g (with uncut steerer / not including axle)
Colour : matte UD carbon finish
Flat Mount disc brake
Rack and fender mounts
Dynamo light mount
Dynamo cable internal routing
Multi-purpose mounts on fork blades (includes black stainless-steel bolts)
Fits 44mm headtubes when used with WCS ZS55-56/30 Lower 33055337012-13, Comp Cartridge ZS55-56/30 Lower 33035337008-9 and WCS EC44/40 Lower 33055337020
30mm maximum spacers below stem.
